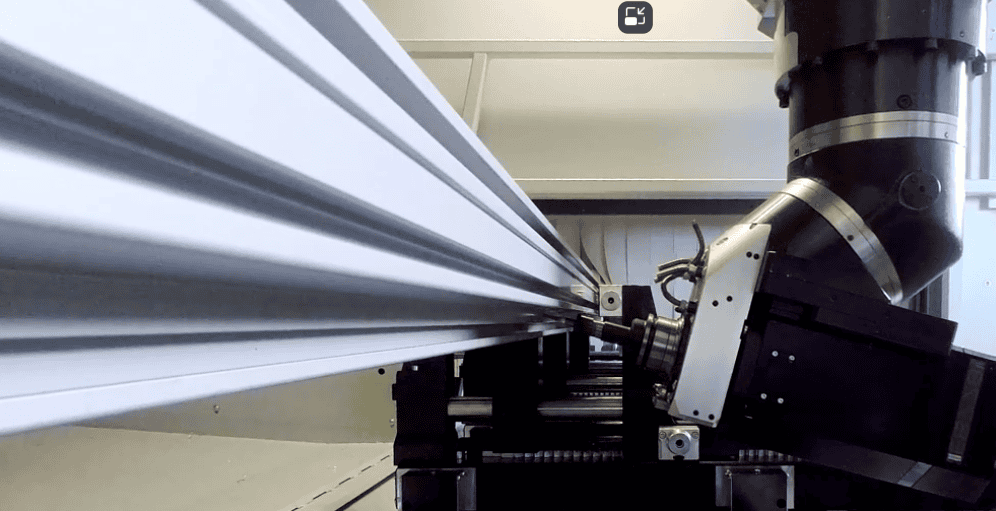

5 Axis Machine Center

Single-setup machining of aluminum and steel profiles — delivering superior accuracy,
surface protection, and repeatability for production and OEM applications.
Cut, drill, tap, and mill multi-face features in one controlled process — even on long, heavy, and complex profiles.

Precision Laser & Fabrication’s 5-Axis Machining Center delivers high-accuracy, multi-face machining of long aluminum and steel profiles in a single setup. By integrating cutting and advanced machining operations into one continuous process, this platform eliminates tolerance stacking, secondary handling, and surface damage common with laser-based or multi-station machining.

The result is dimensionally consistent, assembly-ready components with superior hole quality, finish control, and repeatability — ideal for OEM, transportation, architectural, and industrial applications.

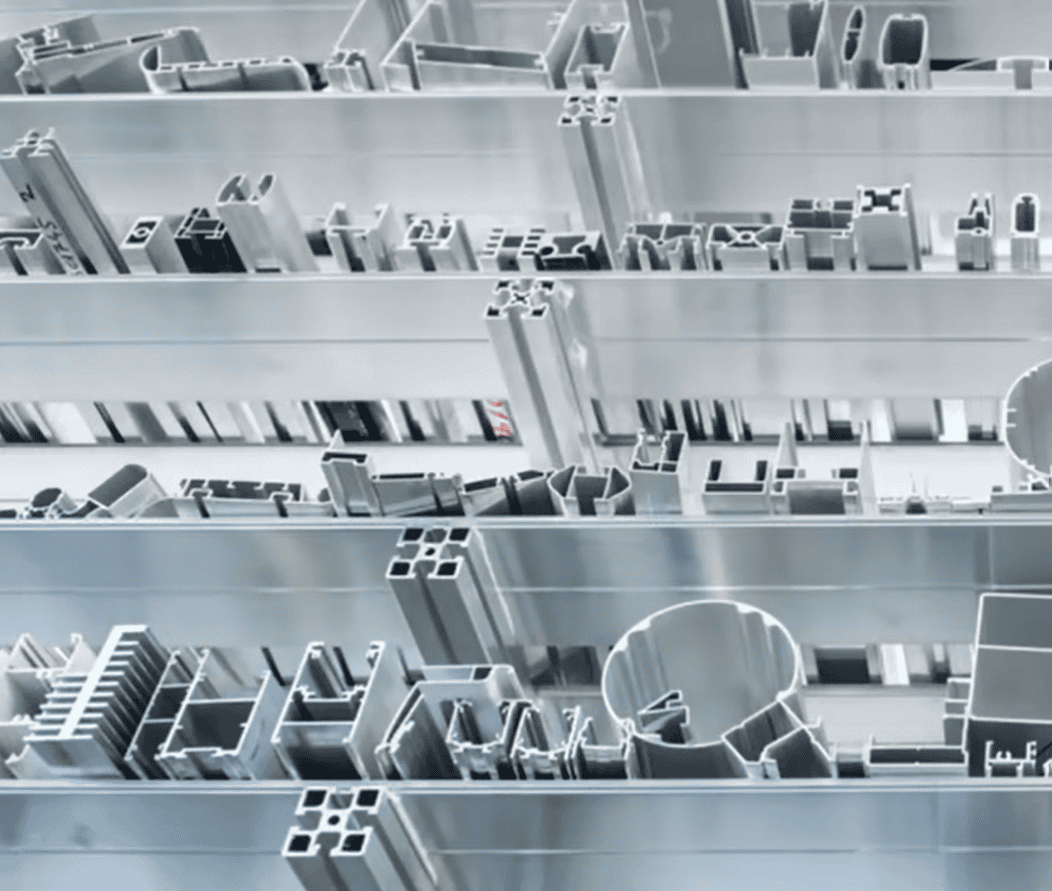

Materials & Profile Capability

Aluminum extrusions and solid aluminum components
Heavy-wall and large-format aluminum profiles
Structural and architectural aluminum sections
Select steel profiles and tubes (application-specific)

Profiles can be machined over extended lengths with the ability to re-index or manually reload parts to access all sides, ensuring full geometric freedom without limiting part design.

Machining Capabilities

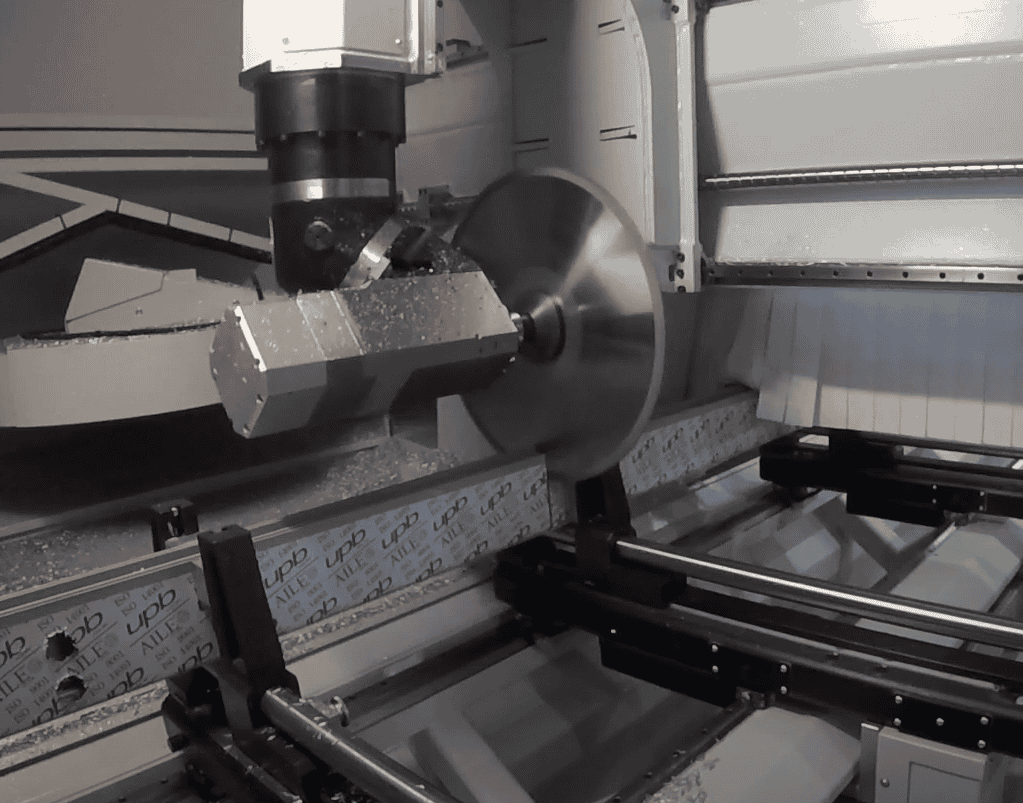

Cutting & Length Control

Precision cut-to-length with integrated machining
Micro-trim finishing for exact final dimensions
Consistent accuracy over long part lengths
Cold machining process with no heat-affected zones

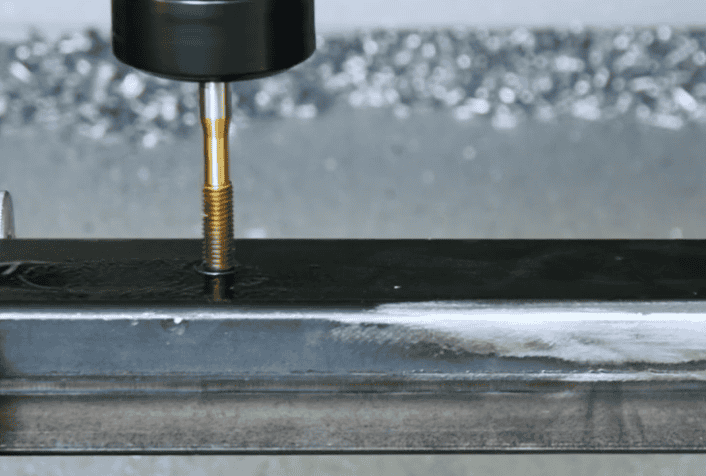

Drilling, Tapping & Hole Making

Straight and angled drilling on multiple faces
Tapped and thread-milled features
Countersinks and counterbores
True, round holes suitable for direct assembly

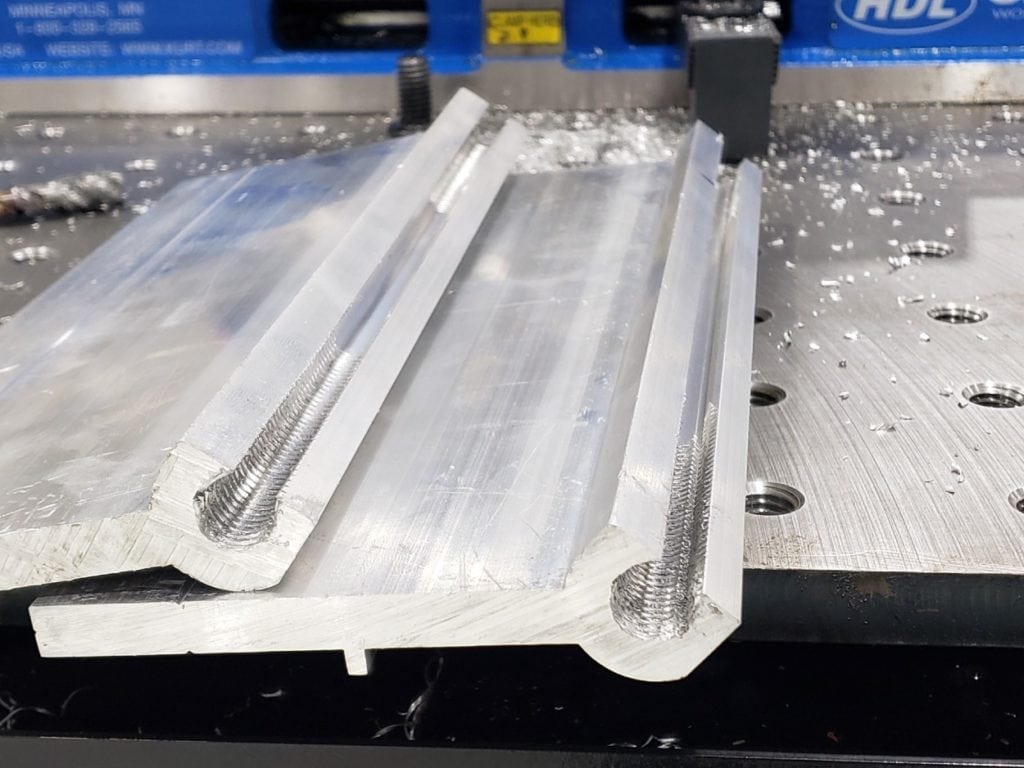

Milling, Slotting & Pocketing

Face milling for flatness and interface control
Continuous slotting for rails and hardware systems
Pocketing for weight reduction and component seating

Multi-Face & 5-Axis Machining

Complex angled features and compound geometries
Multi-face machining in a single controlled setup
Full-length profile machining with consistent accuracy

Accuracy & Tolerances

Cut-to-length accuracy	Typically ±0.004” to ±0.010”
Machined feature accuracy	Typically ±0.005” to ±0.010”
Hole location consistency	Consistent hole location over extended lengths
Production repeatability	Repeatable OEM-grade results across production runs

Surface Finish & Part Protection

Cold machining with no thermal distortion
No burn marks, slag, or heat discoloration
Controlled clamping minimizes surface marring
Ideal for finished aluminum and cosmetic components

Advantages Over Tube Lasers

No heat-affected zones
Superior hole quality
Maintains straightness on long profiles
Supports milled features and precision interfaces

Advantages Over Conventional Milling Stations

Long components machined end-to-end
Reduced setups and material handling
Improved consistency and throughput

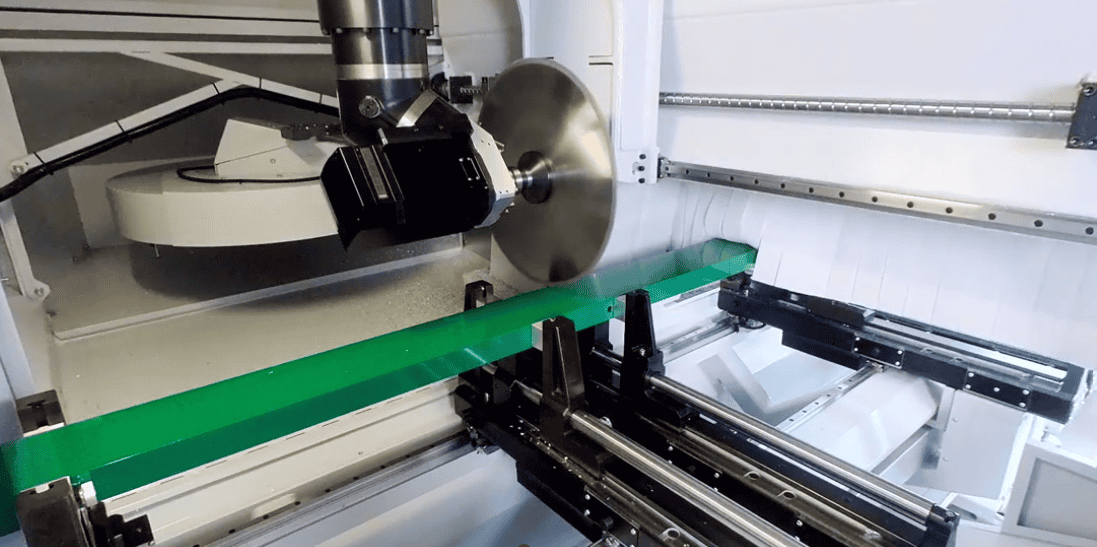

Steel Processing Capability

Supports select steel profiles and tubes where accuracy, finish, and hole quality are critical. Each application is reviewed to ensure optimal process fit.

Built for OEM & Production Programs

Scalable and repeatable machining programs

Multi-part and kit production

Consistent quality year after year

The PLF Integrated Advantage

Fully integrated with PLF’s material supply, cutting, forming, welding, fabrication, and assembly capabilities — allowing customers to consolidate suppliers, reduce lead times, and improve overall project execution.
